Pneumatics
|
|
Click Thumbnail for larger photo
|
|
On mail order sales of less
than $15 there is an additional $5 handling fee.
|
|
|
|
|
 |
Instrument Air Pressure Regulator Graco #110-776, Max input 100 psi, output adjustable range 0 to 10 psi, diecast body, all ports are 1/4" npt RG2500 . . . . . . . . . . . . . . . . . . .$15.00 |
 |
Stainless Steel Ball Valve Whitey # SS-62TS4-JK, Rated 2200 psi @ 100ºF Ports are 1/4" Swagelok fittings BV2300 . . . . . . . . . . . . . . . . . .$35.00 |
 |

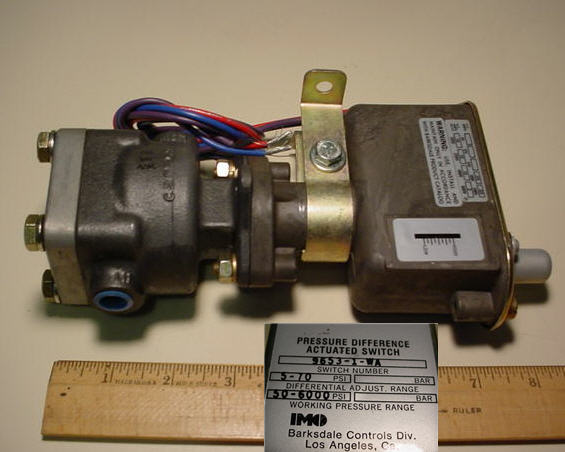

Pressure Differential Activated Switch Barksdale, #9653-1-WA, working pressure 50 to 6000 psi, pressure differential 5 to 70 psi, switch rating is 10A @125vac, ports are 1/4"npt Normally open or closed SW9402 . . . . . . . . . . . . . . . . . .$50.00
|
 |
Cast Alumium Ball Valve Jamesbury #A-4436, Ball and Stem are 316 Stainless, seats are PTFE, max pressure 400 psi, ports are 1/4" NPT female BV9350 . . . . . . . . . . . . . . . . . . $12.50 |
 |
Ball Valve, Nickel plated Brass, Stainless steel ball and Teflon seals 3/8" NPT male thread on one end and 1/2"NPT male thread on opposite end. 4" long handle with plastic end cover. RFE BV9200 . . . . . . . . . . . . . . . . . . $5.00 |
 |
Miniature Air Filter Watts Fluidair, #F501-01AH M1/23, air filter with manual drain, polycarbonate bowl, 120ºF Max, ports are 1/8" npt female FT9550 . . . . . . . . . . . . . . . . . . . .$12.50
|
 |
Airflow regulator with gauge and Filter Wilkerson #C04-04-Q37, Brass body air flow regulator, (not pressure regulator) Gauge reads 0 to 100 psi, Input port 1/4" npt, output port 1/8" npt, automatic self draining filter RG9950 . . . . . . . . . . . . . . . . . . . $25.00 |
 |
Brass Check valve
Deltrol #C108 one way check valve designed for Air or low pressure liquids, machined from 11/16 hex bar stock, ports are 1/8"npt VV2050 . . . . . . . . . . . . . . . . . . . .$5.00 |
 |
Adjustable Pressure Switch SMC AirChecker PS1100-R06L, Set point ranges from -14 to 58psi, switch operates on 12 - 24VDC, input port designed to be used with 6mm id flexible tubing, has 10" long leads SW2151 . . . . . . . . . . . . . . . . . . . . $19.95
|
 |
Pneumatic Micronic Type Filter Assembly Wintec 14251-502, 503, 505(3) 2500 psi working pressure, 15 micron ABS
|
 |
Air Operated Stainless Steel Ball Valve Whitey SS-43F4-31C 1/4"npt valve ports, 1/8"npt control ports, 3000 PSI operating VV2302. . . . . . . . . . . . . . . . . . . . . . $100.00 |
 |
7 Stack Gang Valve Assembly with Filter and Regulator, Numatics Assy # 225-458 B, 031SA400B, 726570 Electrically operated, 24VDC valve coils 1/8" npt ports. Max Operating pressure on valves 150 psi, Max Regulator output 60 psi SV2003 . . . . . . . . . . . . . . . . . . . . $65.00 |
|
On mail order sales of less than $15 there is an additional $5 handling fee. |
